Type

DMM-12-12-G1

IoT Chip

ENK FullBand (Hisilicon/ MTK/ Qualcomm Chip)

AC Voltage

Voltage: AC 90~264Vac

AC Current

Current : AC 3Amp (MAX)

Connector interface

7Pin NEMA interface (Compliant with ANSI C136.41 design)

Measure Function

Input Voltage、Input Current、Input Power、Temperature

Lighting Function

Lighting ON/OFF Control & 0~10V Dimming Function

Work Temperature

0 ºC ~ +40 ºC

Work humidity

20% ~ 95% RH non-condensing

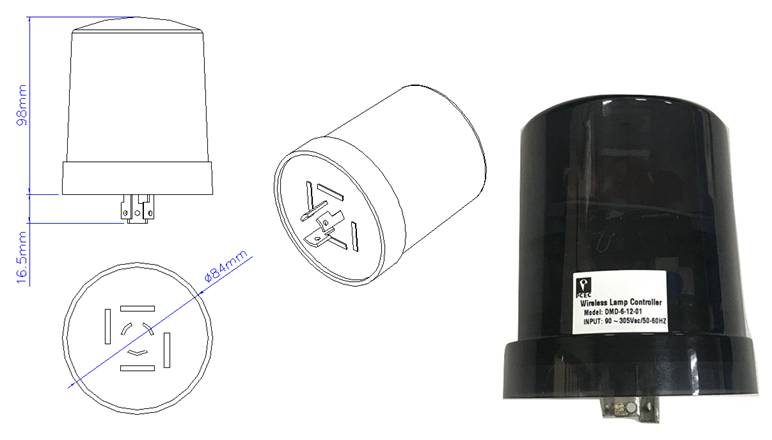

Institution size

84mm*84mm*114.5mm

Ingress Protection Rating

IP65
